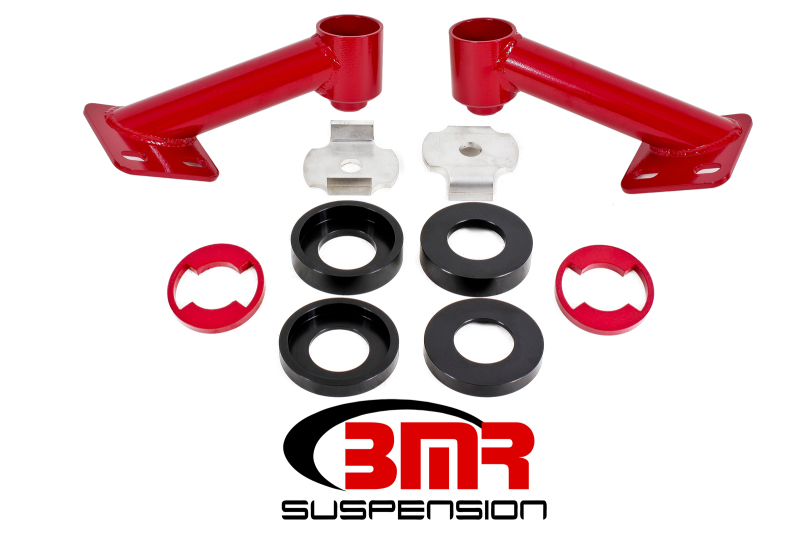

Built from 6061-T6 billet aluminum, stainless steel, and heavy-duty 1 5/8-inch DOM steel tubing, BMR?s CB005 Cradle Bushing Lockout Kit is designed to nearly eliminate cradle bushing deflection, which is one of the biggest causes of wheelhop. BMR?s CB005?s billet aluminum upper bushing lockout rings capture the inner bushing sleeve (front and rear) and the outer lip of the bushing cup on the cradle (front). The lower bushing locating washers (front) capture the bottom portion of the bushings? inner sleeves. By capturing both parts of the bushings? inner sleeves, movement on any plane (fore/aft, lateral, and vertical) is nearly eliminated. This assembly is completed with bolt-on cradle braces that replace the factory sheer plates. The large lug on the cradle side of the braces positively locates the cradle, ensuring it is perfectly centered under the car. The two bolts in the frame ensure the location of the cradle can?t change under any form of driving.
Application Guide


This Part Fits:

Year	Make	Model	Submodel
2019-2020	Ford	Mustang	Bullitt
2015-2020	Ford	Mustang	EcoBoost
2015-2020	Ford	Mustang	EcoBoost Premium
2015-2020	Ford	Mustang	GT
2015	Ford	Mustang	GT 50 Years Limited Edition
2015-2020	Ford	Mustang	GT Premium
2015-2020	Ford	Mustang	Shelby GT350
2016-2020	Ford	Mustang	Shelby GT350R
2020	Ford	Mustang	Shelby GT500
2015-2017	Ford	Mustang	V6
