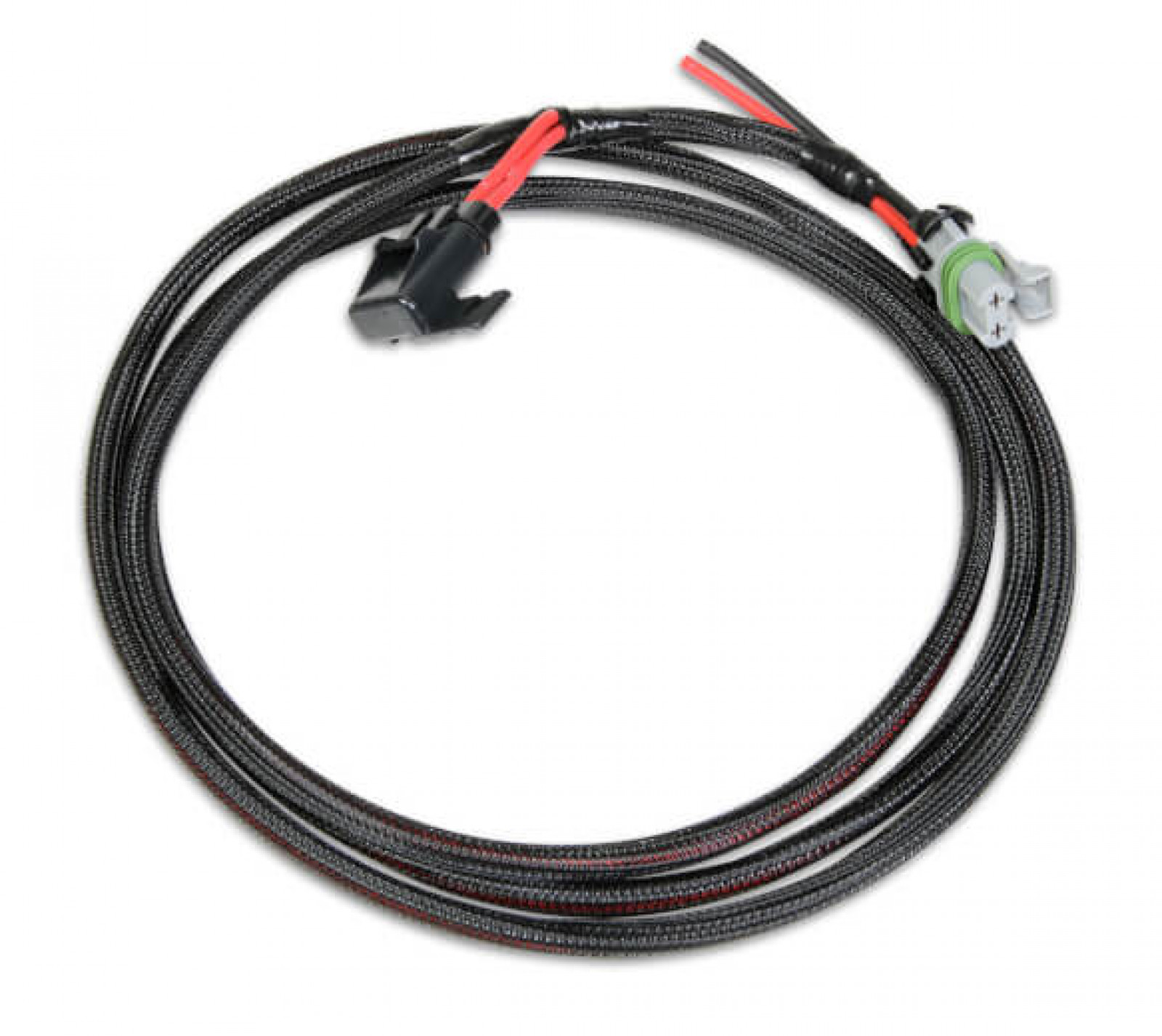

This Harness is required with HP or Dominator ECUs. Includes, 13' long, 10 AWG main power harness, Qty. (2) 3/8" ring terminals and shrink tube (not pictured) . The harness is fuse protected and covered in braided split loom for additional abrasion protection .
Features
- Bolt on 4150 Flange Carburetor Replacement
- Contains 8, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 1250 HP on forced induction applications
- Terminator X Max Stealth 4150 kits provide transmission control for Pre-2009 GM 4L60E/4L80E Transmissions (Part numbers 550-1014, 550-1015,550-1016)
- Internal 1bar MAP sensor, built into the Terminator X ECU.
- All of the wiring exits below the rear fuel injector cover, for a completely stealth installation
- Timed spark port for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor
- Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886
- Integrated ignition timing control improves idle stability, fuel economy, and wide open throttle performance
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn
- OEM Style TPS/IAC for years of dependable service
- Available in 3 finishes: Shiny, Black, and Gold
