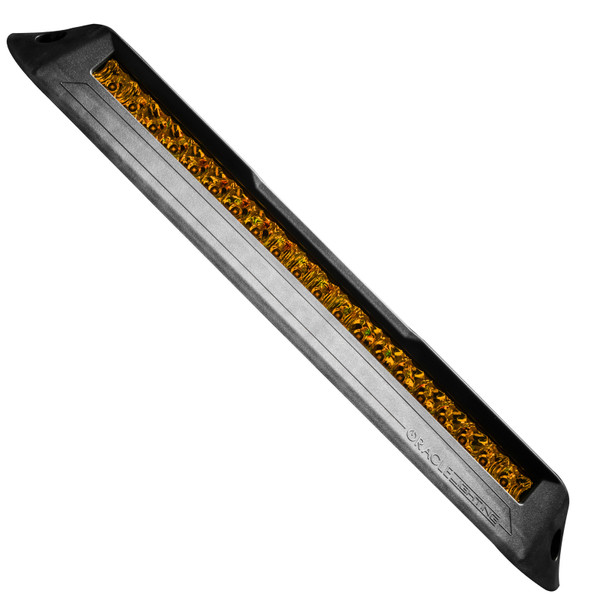

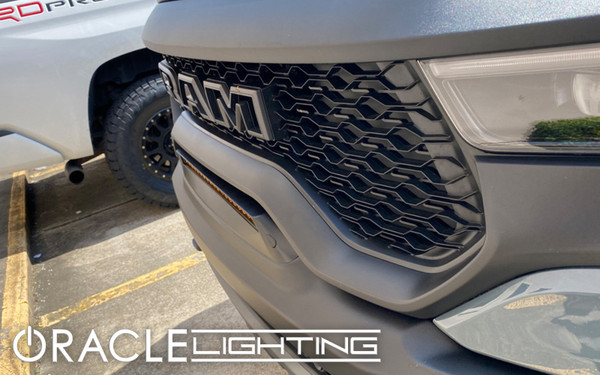

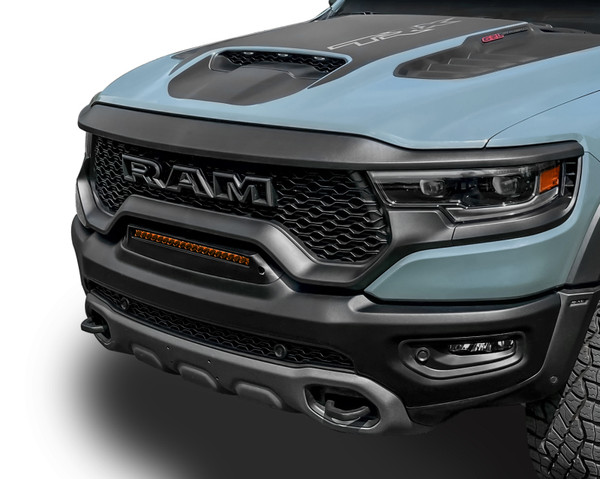

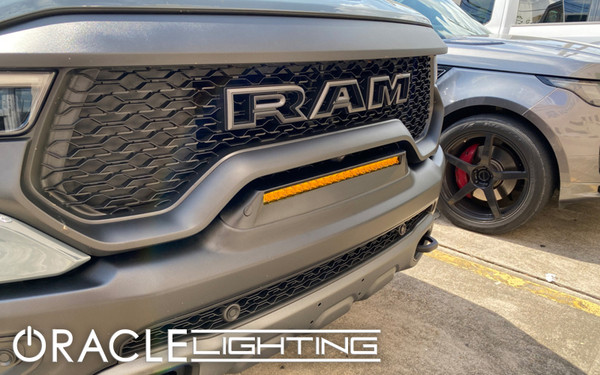

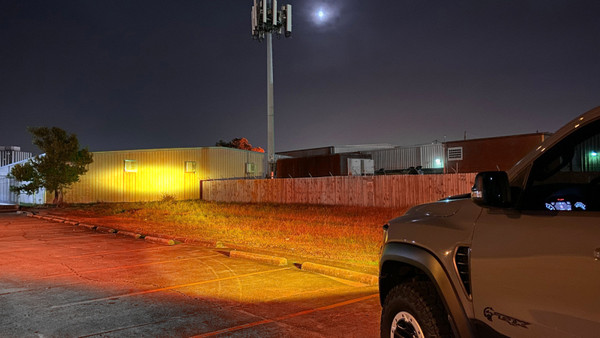

This unique new lighting system from ORACLE Lighting provides functional forward LED lighting while maintaining a factory appearance. Our high powered 100W LED light bar is fitted into a housing which is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel. The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches, if your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504 The projection of the light bar is a mixed beam with 8 of the LEDs using a flood (45? angle) beam and 12 of the LEDs using a spot (25? angle) beam the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33? (8x45? + 12x25?) and calculating based on 14000Lm the total candela of the light is 54107.70cd.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2019-2021	Ram	1500	Big Horn
2019-2021	Ram	1500	HFE
2019-2021	Ram	1500	Laramie
2019-2021	Ram	1500	Laramie Longhorn
2019-2021	Ram	1500	Limited
2021	Ram	1500	Limited Longhorn
2019-2021	Ram	1500	Lone Star
2021	Ram	1500	Longhorn
2019-2024	Ram	1500	Rebel
2020-2021	Ram	1500	Special Service
2019-2021	Ram	1500	Tradesman
2021-2024	Ram	1500	TRX
2021	Ram	1500	TRX Launch Edition
