TRACTIONMAX VERSION TX1114FD SUPPORTS THE FOLLOWING VEHICLES:

• 2019-2022 FORD MUSTANG 2.3L ECOBOOST
• 2011-2014 FORD MUSTANG SHELBY GT500
• 2020-2022 FORD MUSTANG SHELBY GT500

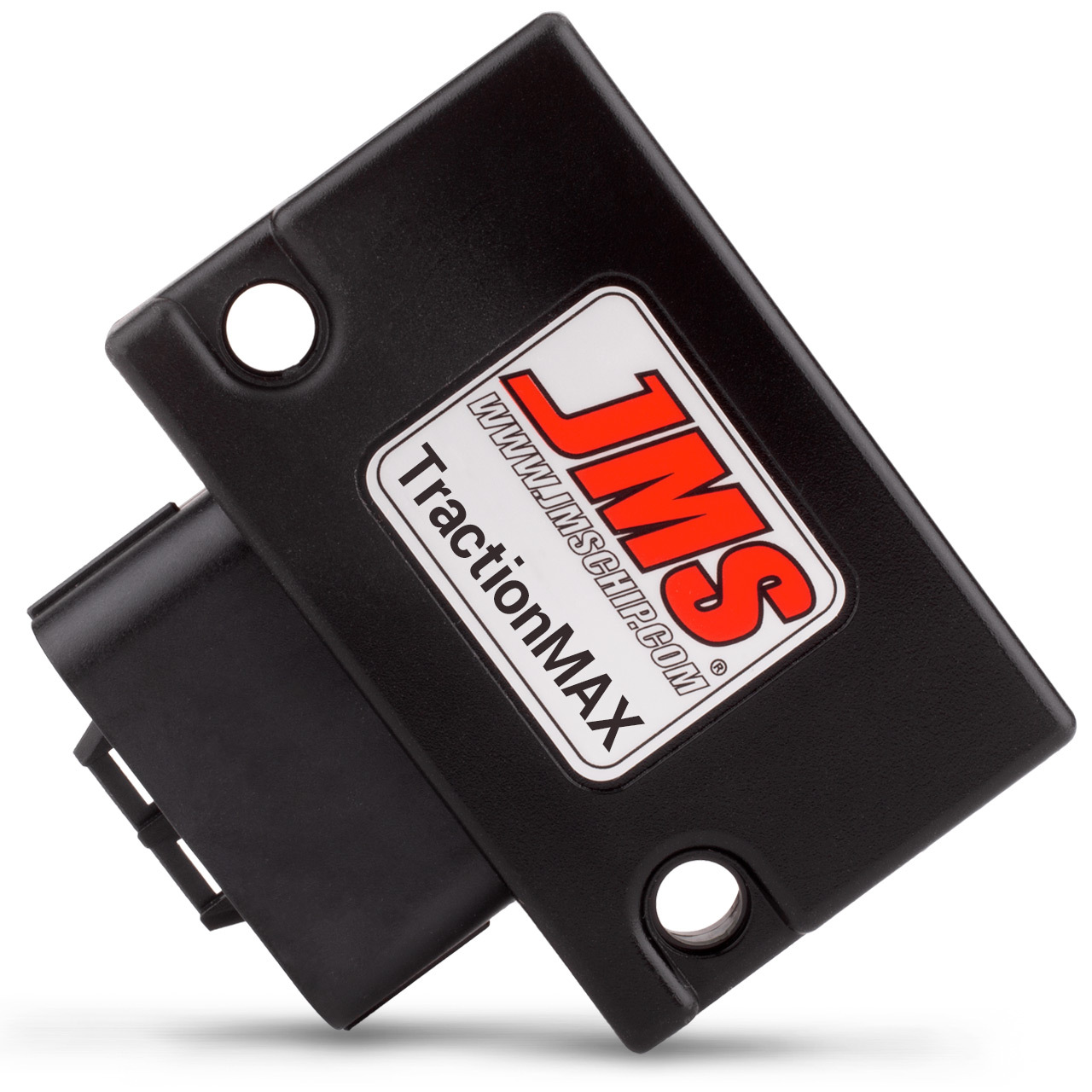

TRACTIONMAX - INSTALLS IN JUST MINUTES

• IMPROVES VEHICLES ACCELERATION AND TRACTION.
• WATERPROOF - RUGGED DESIGN
• PLUG AND PLAY - SIMPLE INSTALL
• REMOTE ADJUSTMENT KNOBS INCLUDED DIAL IN YOUR EXACT THROTTLE AND TRACTION SETTINGS.
• ENHANCE LOW AND MID-RANGE HORSEPOWER TORQUE AND ACCELERATION.
• REDUCE TURBO LAG ELIMINATE STALLING ON MANUAL GEARBOX VEHICLES.
• CAN ALSO BE STACKED WITH OTHER TUNING PRODUCTS TO MAXIMIZE PERFORMANCE.
• DESIGNED AND ASSEMBLED IN THE U.S.A.

EACH KIT CONTAINS: TRACTIONMAX DEVICE PLUG AND PLAY WIRING HARNESS REMOTE ADJUSTMENT KNOBS INSTALLATION KIT ACCESSORIES AND INSTALLATION INSTRUCTIONS

AUTOMATED TRACTION FEATURE - TURN ON THE FEATURE BY INSTALLING THE THREE PIN JUMPER (INCLUDED).

• TYPICALLY THIS FEATURE WOULD BE USED BY A VEHICLE WITH A MANUAL TRANSMISSION.

OVERVIEW: TRACTION CONTROL WORKS ONCE AND THEN IT IS LOCKED OUT FOR 20 SECONDS.

USAGE EXAMPLE:

• LAUNCH IN FIRST GEAR - TRACTIONMAX CONTROLS THE RATE OF ACCELERATION TO KEEP THE TIRES FROM SPINNING.
• TRACTIONMAX LOCKOUT FOR THE NEXT 20 SECONDS &MDASH THE THROTTLE FUNCTIONS LIKE NORMAL.
• DURING LOCKOUT GEARS CAN BE SHIFTED AND THE THROTTLE RESPONDS LIKE NORMAL.

NOTE: TO ENABLE LOCKOUT YOU MUST GO TO WOT (WIDE OPEN THROTTLE).

• AFTER 20 SECONDS THE TRACTION CONTROL FEATURE IS RE-ENABLED.

ON-THE-FLY TRACTION FEATURE - TURN ON THE FEATURE BY INSTALLING THE THREE PIN CONNECTOR WITH TWO WIRES.

• CONNECT THE TWO BLUNT WIRES TO A MOMENTARY SWITCH OR REGULAR SWITCH.
• FEATURE IS ACTIVATED WHEN THE TWO WIRES ARE CONNECTED TOGETHER.
• TYPICALLY THIS FEATURE WOULD BE USED ON A VEHICLE WITH AN AUTOMATIC TRANSMISSION.

OVERVIEW: TRACTION CONTROL IS DISABLED WHEN THE TWO WIRES ARE CONNECTED TOGETHER.

USAGE EXAMPLE:

• LAUNCH VEHICLE - TRACTIONMAX CONTROLS THE RATE OF ACCELERATION TO KEEP THE TIRES FROM SPINNING.
• PUSH THE ON-THE-FLY TRACTIONMAX LOCKOUT BUTTON WHEN YOU WANT THE THROTTLE TO FUNCTION LIKE NORMAL.

ALTERNATIVE USAGE:

• CONNECT THE TWO WIRES TO A TOGGLE SWITCH.
• TURN TRACTIONMAX ON/OFF USING THE TOGGLE SWITCH
• AUTOMATED TRACTION LOCKOUT FEATURE - THIS FEATURE IS ENABLED WHEN THE CUSTOMER PLUGS IN THE AUTOMATED LOCKOUT ENABLE JUMPER (INCLUDED).
• ON-THE-FLY TRACTION LOCKOUT FEATURE
• USE YOUR OWN BUTTON OR SWITCH TO ENABLE OR DISABLE THE TRACTION CONTROL FEATURE.
• WIRING TO CONNECT YOUR OWN CONTROL BUTTON IS INCLUDED OR YOU CAN UPGRADE TO THE OPTIONAL (SOLD SEPARATELY) JMS CONTROL BUTTON.

Instructions: https://www.jmschip.com/content/TractionMAX/TractionMAX_install_JMS.pdf

ARB EO Numbers: https://www.jmschip.com/content/PedalMAX/JMS_EO_list.pdf

Compare PedalMAX - Terrain - TractionMAX: https://www.jmschip.com/content/PedalMAX/PM-PMT-TM_comparison.pdf
