• nstalls into factory location with some plastic trimming required


• Features record-breaking CVF proprietary core which has decreased charge air temps. 40+ degrees in similar applications

• Enlarged core size of 24 x 8 x 3.5 in. features end tanks stamped with the CVF logo


• TIG-welded construction

• CVF Lifetime Warranty

LESS HEAT, MORE POWER

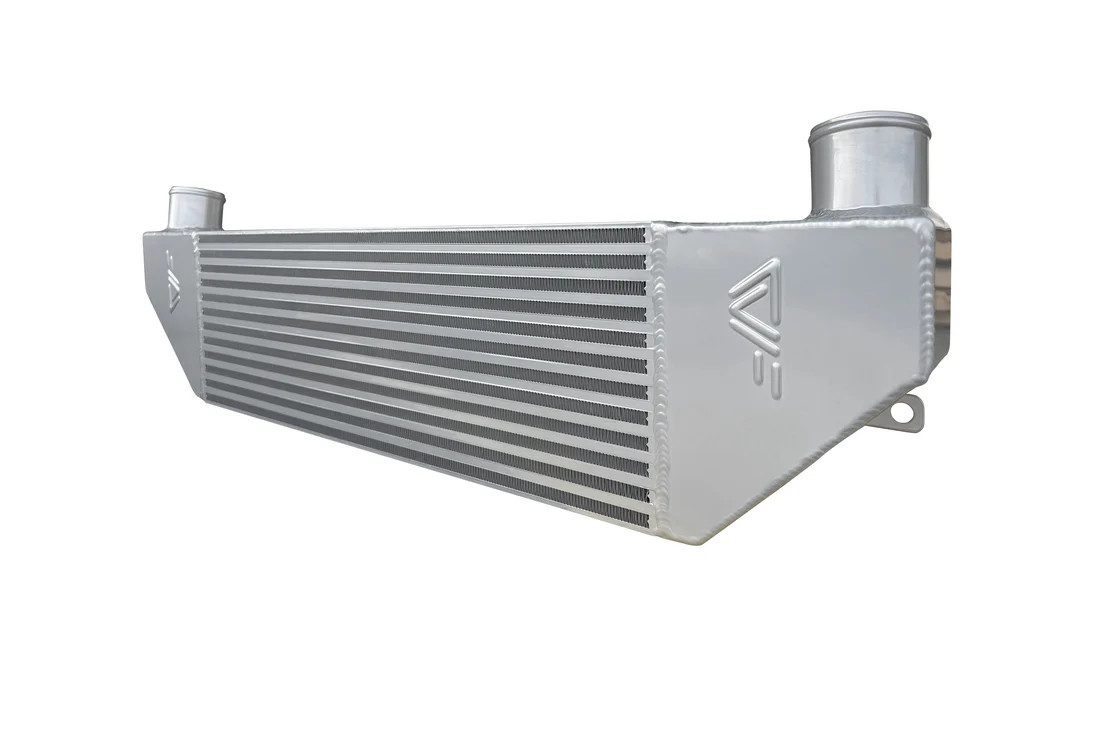

The CVF Performance Intercooler for 2019-2023 Ford Edge ST is a direct fit replacement (some trimming of shroud required) that is almost two times the size of the stock unit. A proven, upgraded intercooler eliminates heat soak that plagues the OEM unit (when temps. steadily increase at WOT as the OEM intercooler becomes overwhelmed and leads to steady power loss). An upgrade to an efficient intercooler is easily the most effective power mod. on turbocharged applications, particularly when paired with a custom tune.

EXCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

Manufactured from top-grade aluminum, the CVF Performance Intercooler features a TIG-welded, proprietary bar-and-plate core design for maximum durability and performance. This particular core construction has led to data-backed results of 40+ degree cooling on similar applications.

APPLICATION AND INSTALLATION

Trimming of plastic shroud is required due to the increased size of the intercooler. Check engine lights will not be activated.

This part installs on the following vehicles:

• 2019-2024 Ford Edge ST

• 2015-2024 Ford Edge 2.0L/2.7L

• 2016-2018 Lincoln MKX 2.7L

• 2019-2023 Lincoln Nautilus 2.0L/2.7L
