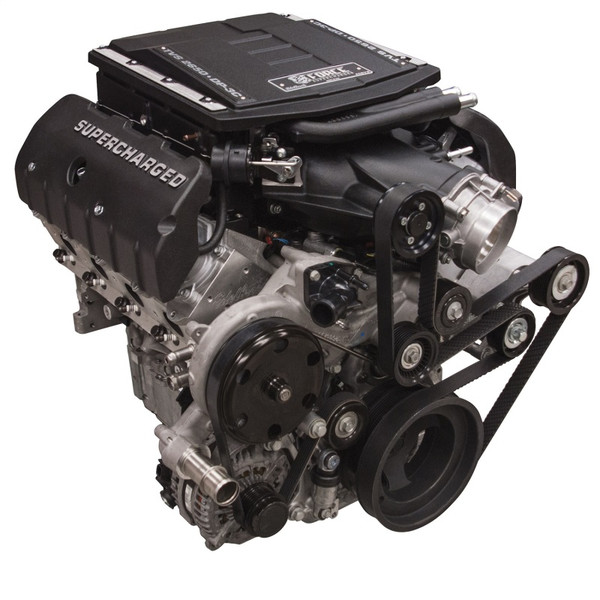

Edelbrock LT1 E-Force Supercharged LT1 crate engine part #46756 produces an astounding 851 horsepower and 780 ft-lbs. of torque on 91 octane pump gas. The foundation of this engine is a brand new GM LT1 Gen V aluminum block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. The 10.5:1 compression ratio allows for safe and reliable supercharged performance on 91 octane pump gas.Sitting o top is an Edelbrock E-Force supercharger system with DP-3C intercooler and Eaton TVS R2650 rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing, intercooler recovery tank, fuel rails, fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and Camaro ZL1/ CTS-V LT4 belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications:- Finish: Black powder coated- Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Horsepower: 851 hp- Torque: 780 ft-lbs.- Compression: 10.5:1- Block: GM LT1 Gen V Alum.- Crankshaft: Manley Forged 4340- Pistons: Manley Forged Aluminum - 20cc- Rods: Manley Forged H-Beam- Camshafts: 243 Deg /254 Deg , .660/.651, 114 LSA- Rocker Arms: GM LT1 Gen V- Induction: E-Force R2650 Supercharger- Cylinder Heads: Edelbrock Performer RPM #77119- Warranty: 2-year / Unlimited mileage
