FUELMAX FOR GM VERSION P2000GM SUPPORTS THE FOLLOWING VEHICLES:

• 2008-2022 GM AND DODGE VEHICLES
• VEHICLES THAT POWER THE FUEL PUMP CONTROLLER AT ALL TIMES

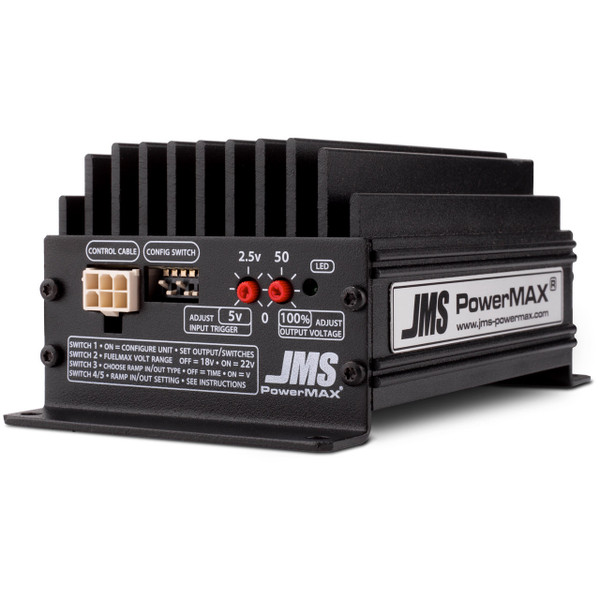

POWERMAX V2 FUELMAX 22 VOLT/44 AMP UNIVERSAL SPLICE-IN VOLTAGE BOOSTER

INCREASE THE OUTPUT OF ANY ELECTRIC FUEL PUMP BY UP TO 85 PERCENT!

WHY REPLACE YOUR FUEL PUMP WHEN YOU CAN RELIABLY INCREASE ITS OUTPUT WITH FUELMAX-

USE FUELMAX V2 TO QUICKLY AND EASILY INCREASE YOUR STOCK FUEL PUMPS OUTPUT!

FUELMAX VERSION 2 UPGRADES INCLUDE: NEW CASE HIGHER OUTPUT AND MORE FEATURES!!

FUELMAX BOOSTS & REGULATES VOLTAGE ON ALL VEHICLES FROM 14.4 TO MAX OUTPUT OF 22 VOLTS.

SUPPORT UP TO 1000HP WITH THE STOCK FUEL PUMP!

SIMPLE INSTALLATION: FUELMAX SPLICES INTO YOUR EXISTING FUEL PUMP +12V DC FEED WIRE. COMPATIBLE WITH ALL 12V OR 16V BATTERY SYSTEMS.

WORKS ON ALL VEHICLES: DOMESTIC AND IMPORT VEHICLES & RACE CARS WITH FACTORY IN-TANK OR EXTERNAL ELECTRIC FUEL PUMPS. ALSO WORKS WITH AFTERMARKET FUEL PUMPS I.E. WELDON AEROMOTIVE HOLLEY ETC&HELLIP

HIGH QUALITY USER ADJUSTABLE HOBBS SWITCH: PRESET 5PSI USER ADJUSTABLE FROM 3PSI TO 7PSI.

ELIMINATE FUEL PRESSURE SPIKES! ADJUSTABLE VOLTAGE RAMP-IN AND RAMP-OUT ALLOWS YOU TO CHOOSE A TIME RAMP OR FROM A MONITORED 0-5V SENSOR.

GREEN STATUS LED: KNOW AT A GLANCE WHAT THE UNIT IS DOING. BLINKING LED BOOSTING VOLTAGE.

EACH FUELMAX V2 KIT CONTAINS: 44 AMP POWERMAX V2 VOLTAGE BOOSTER WIRING HARNESS INSTALLATION KIT AND SET OF INSTRUCTIONS.

INSTALLATION KIT CONTAINS: 1 - HOBBS SWITCH PRESET 5PSI (USER ADJUSTABLE 3-7PSI) 1 - FITTING 1/8NPT FEMALE TO 3/16 MALE BARB 1 - VACUUM TEE 3/16 X 3/16 X 3/16 1 - VACUUM TEE 1/4 X 1/4 X 3/16 1 VACUUM TEE 3/8 X 3/8 X 3/16 1 FOOT OF 5/32 VACUUM HOSE 1 - 30AMP MINI-FUSE SOLDER 2 - 10/12GAUGE HEAT SHRINK BUTT SPLICES 2 - 8 STUD 18/22 GAUGE WIRE HEAT SHRINK RING TERMINAL 1 - 10-GAUGE HEAT SHRINK RING TERMINAL 6 - ZIP TIES 6 - SELF DRILLING HEX SCREWS AND MINI SCREW-DRIVER.

Instructions: https://www.jmschip.com/content/PowerMAX_V2/PM2000-PM2020_Install_Universal_v11_WEB.pdf

Brochure: https://www.jmschip.com/content/PowerMAX_V2/PowerMAXv2_Technical_Info_WEB.pdf

Catalog: https://www.jmschip.com/content/JMS_Catalog_Web.pdf
