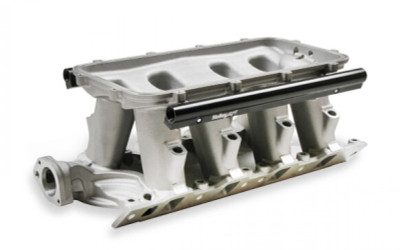

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Manifold is designed for a 8.2" deck height.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction.

***EFI Base Manifold only-Manifold tops available seperately.

*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

Features

• Port Size ‚Äì 2.49‚Äù Height x 1.21‚Äù Wide
• Mounting Flange Gasket Type ‚Äì Standard LS3 Molded O-Ring
• Plenum Top Gasket Type ‚Äì 3/32‚Äù Round O-ring Cord
• Runner Length ‚Äì 6.58‚Äù, As-Cast Runner Cross-Sectional Area ‚Äì Tapered 4.25 in¬≤ to 2.53 in¬≤
