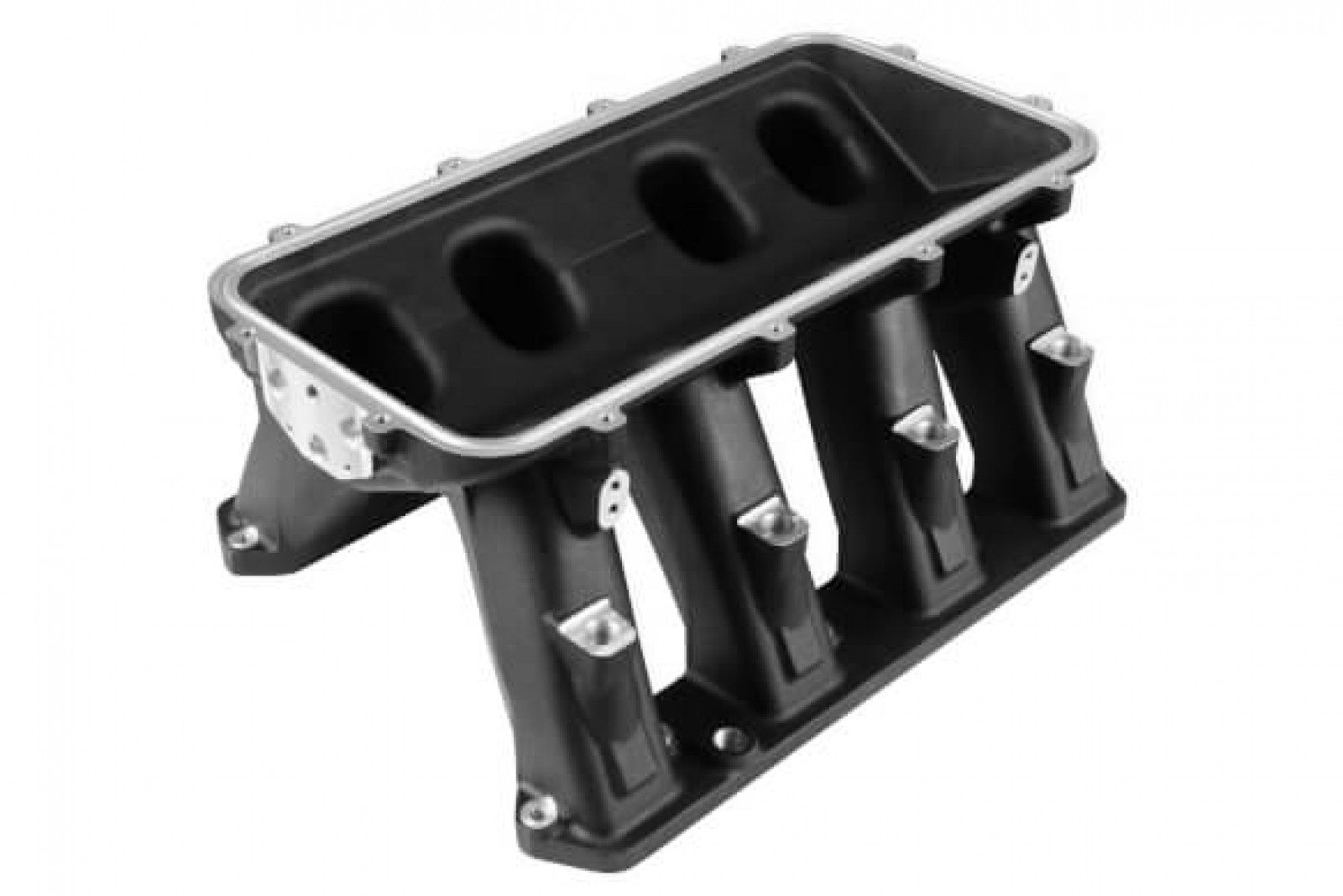

Add even more power to your Gen III Hemi engine with a Holley Hi-Ram intake manifold. This cast intake manifold has large intake ports - fits 2009-up 5.7L, 2005-2010 6.1L & 2011-up 6.4L engines.
The Holley Hi-Ram intake manifold is for high-performance applications where induction system height is not limited. Using this Hi-Ram intake with high flowing Gen III Hemi cylinder heads has outstanding potential for naturally aspirated & forced induction applications. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
The base is designed to be modular in configuration to accept a wide range of EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations.
The EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flow and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Intended for use on naturally aspirated, forced induction, or nitrous engines in the 5.7 to 7.2+ liter range, max power at 7500-8500 RPM.
Features
- Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
- Plug and Play compatible with Holley EFI accessories – Analog gauges, shift lights, modules, and both 6.86” and 12.3” Pro Dash
- EV1 or EV6 injector harness included (depending on your injector configuration)
- High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
- Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
- Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications – internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
- Vacuum hose adapters included - (1/8”, ¼”, and 3/16” sizes)
- 4 inputs – 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
- Boost Control – boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
- Nitrous Control – channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
- Advanced Tables – ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
- On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
- 3.5” touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
- Compact ECU (Engine Control Unit) – At only 7.45” x 4.1” x 1.66” the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6” x 4.1” x 1.66”). REMINDER: diagnostic LED’s must face up!
- FREE EFI Tuning software – For compete control of your Terminator X power plant
