Available with single or dual injector provisions and a burst panel flange, the LS3 Ultra Lo-Ram intake manifold is designed for boosted combinations with hood clearance in mind.

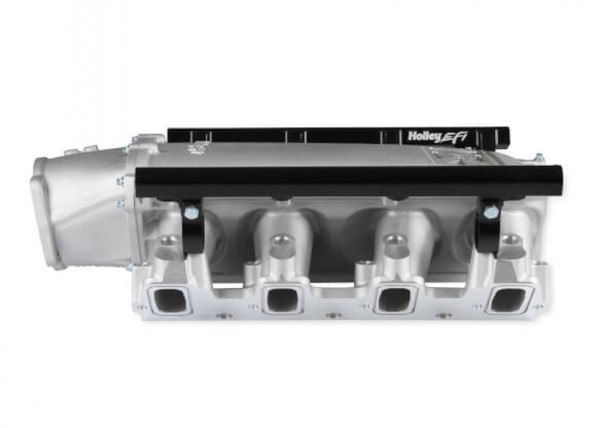

The Holley LS3 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. The front entry plenum flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood. The LS3 Ultra Lo-Ram is constructed to provide a very low profile modular intake manifold suitable for fabrication of special throttle body adapters or inlet ducts for custom installations. Available with single or dual injector provisions and a burst panel flange options.The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.

Features

• Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
• Plug and Play compatible with Holley EFI accessories ‚Äì Analog gauges, shift lights, modules, and both 6.86‚Äù and 12.3‚Äù Pro Dash
• EV1 or EV6 injector harness included (depending on your injector configuration)
• High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
• Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
• Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications ‚Äì internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
• Vacuum hose adapters included - (1/8‚Äù, ¬º‚Äù, and 3/16‚Äù sizes)
• 4 inputs ‚Äì 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
• Boost Control ‚Äì boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
• Nitrous Control ‚Äì channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
• Advanced Tables ‚Äì ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
• On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
• 3.5‚Äù touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
• Compact ECU (Engine Control Unit) ‚Äì At only 7.45‚Äù x 4.1‚Äù x 1.66‚Äù the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6‚Äù x 4.1‚Äù x 1.66‚Äù). REMINDER: diagnostic LED‚Äôs must face up!
• FREE EFI Tuning software ‚Äì For compete control of your Terminator X power plant
