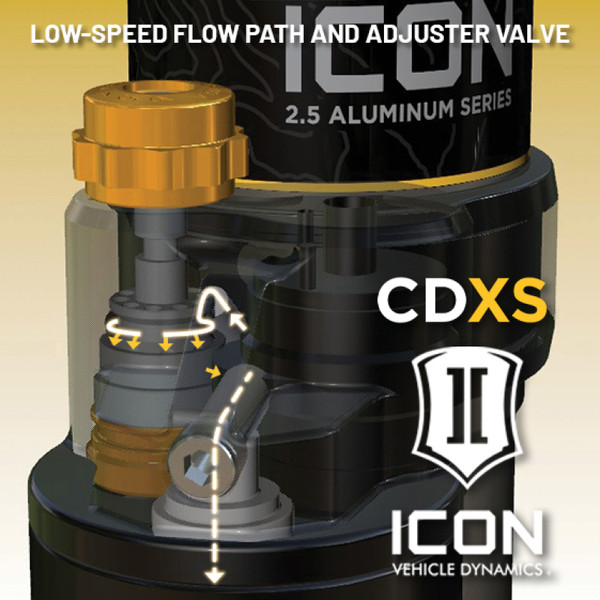

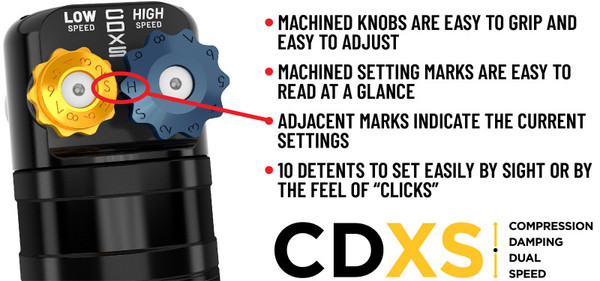

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra or 2023-2025 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3.5-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2025	Toyota	Sequoia	1794 Edition
2023-2025	Toyota	Sequoia	Capstone
2023-2025	Toyota	Sequoia	Limited
2023-2025	Toyota	Sequoia	Platinum
2023-2025	Toyota	Sequoia	SR5
2023-2025	Toyota	Sequoia	TRD Pro
2022-2025	Toyota	Tundra	1794 Edition
2022-2025	Toyota	Tundra	Limited
2022-2025	Toyota	Tundra	Platinum
2022-2025	Toyota	Tundra	SR
2022-2025	Toyota	Tundra	SR5
2022-2025	Toyota	Tundra	TRD Pro
