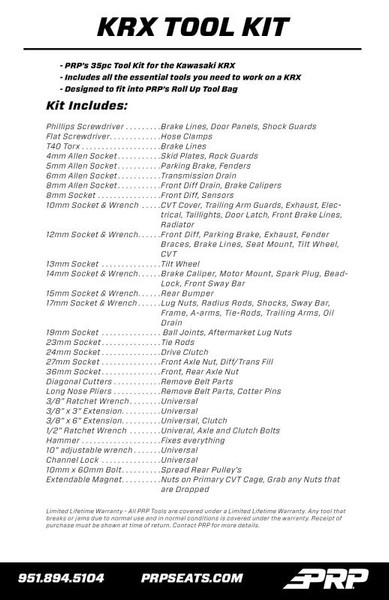

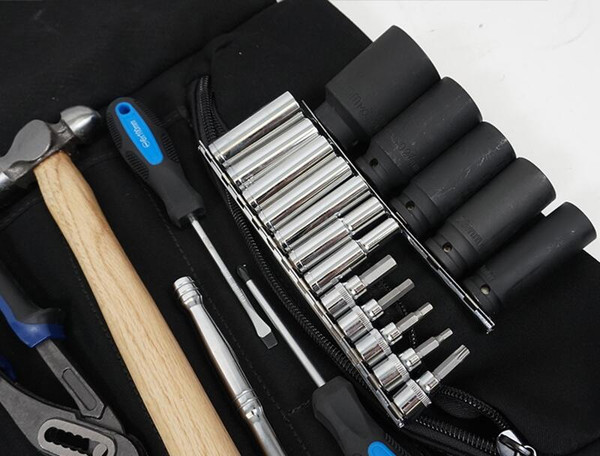

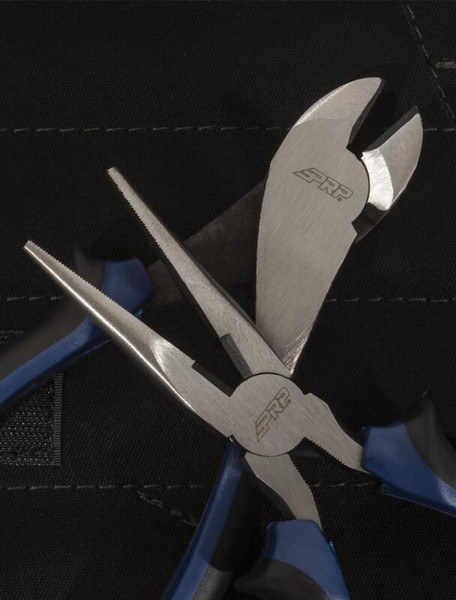

PRP's Kawasaki KRX Tool Kit provides everything you need to fix your Kawasaki Teryx KRX or KRX4 out on the trail. This 35 piece kit includes a selection of high-quality ratchets, sockets, wrenches, extension bars, pliers, and a ball peen hammer (for when things get really fun). We've hand picked the exact tools that are needed most when working on a KRX - So you have only the essentials that you really need, without adding the extra weight of an entire tool box. Below we have listed all the tools included, along with a handy guide to the most common uses for each tool. Each tool also includes a Limited Lifetime Warranty. This Kit includes Tools only. Designed to fit into PRP'S Roll Up Tool Bag. (Bag sold seperately or in our Combo Kit) Fitment: Kawasaki Teryx KRX & Kawasaki Teryx KRX4 KIT INCLUDES: ALLEN Sockets 4mmx3/8 - Skid plate, rock guards 5mmx3/8 - Parking brake, fenders 6mmx3/8 - Transmission drain 8mmx3/8 - Front diff drain, brake caliper TORX BITS- Sockets T40x3/8 - Brake lines SOCKETS/WRENCHES 8mmx3/8 - Front diff, sensors 10mmx3/8 - CVT cover, trailing-arm guards, exhaust, electrical grounds, taillights, door latch, front brake lines, radiator 10mm End Wrench 12mmx3/8 - Front diff, parking brake, exhaust, fender braces, brake lines, seat mount, tilt wheel, CVT 12mm End Wrench 13mmx3/8 - Tilt wheel 14mmx3/8 - Brake caliper, motor mount, spark plug, bead locks, front sway bar 14mm End Wrench 15mmx3/8 - Rear bumper 15mm End Wrench 17mmx3/8 - Deep Socket Lug nuts, radius rods, shocks, sway bar, frame, A-arms, tie-rods, trailing arms, oil drain 17mm End Wrench 19mmx1/2 - Deep socket Ball joints, aftermarket lug nuts 23mmx1/2 - Tie-rods 24mmx1/2 deep socket - drive clutch 27mmx1/2 - Front axle nut, diff/trans fill 36mmx1/2 - Front/Rear axle nut EXTRAS Phillips Screwdriver: Brake lines, door panels, shock guards, firewall Flat Screwdriver - Hose clamps Needle nose Pliers - Cotter pins, remove belt parts Channel Lock Diagonal cutter - Remove Belt Par
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2009-2010	Kawasaki	ER-6N	Base
2020-2024	Kawasaki	KRF1000 Teryx KRX 1000	Base
2021,2023-2024	Kawasaki	KRF1000 Teryx KRX 1000 eS	Base
2008-2009	Kawasaki	KRF750 Teryx 4x4	Base
2009-2013	Kawasaki	KRF750 Teryx FI 4x4	Base
2008-2013	Kawasaki	KRF750 Teryx FI 4x4 LE	Base
2015-2024	Kawasaki	KRF800 Teryx	Base
2015-2021	Kawasaki	KRF800 Teryx LE	Base
2021-2024	Kawasaki	KRF800 Teryx S LE	Base
2023-2024	Kawasaki	KRT1000 Teryx KRX 4 1000 SE	Base
2012	Kawasaki	KRT750 Teryx4 4x4	Base
2012-2013	Kawasaki	KRT750 Teryx4 4x4 EPS	Base
2014	Kawasaki	KRT800 Teryx	Base
2014	Kawasaki	KRT800 Teryx LE	Base
2014-2024	Kawasaki	KRT800 Teryx4	Base
2014-2021	Kawasaki	KRT800 Teryx4 LE	Base
1975-1976	Kawasaki	KX400	Base
1980-1981	Kawasaki	KX420	Base
1974,2019-2024	Kawasaki	KX450	Base
