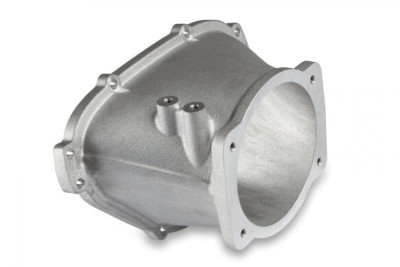

The 300-676 is the 105mm throttle body adapter in the 300-680 complete kit. Offering this separately allows you to select your components individually as you build your system.
The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front-feed configuration. The 300-680 Lo-Ram front-feed plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Features
- Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
- Plug and Play compatible with Holley EFI accessories – Analog gauges, shift lights, modules, and both 6.86” and 12.3” Pro Dash
- EV1 or EV6 injector harness included (depending on your injector configuration)
- High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
- Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
- Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications – internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
- Vacuum hose adapters included - (1/8”, ¼”, and 3/16” sizes)
- 4 inputs – 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
- Boost Control – boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
- Nitrous Control – channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
- Advanced Tables – ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
- On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
- 3.5” touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
- Compact ECU (Engine Control Unit) – At only 7.45” x 4.1” x 1.66” the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6” x 4.1” x 1.66”). REMINDER: diagnostic LED’s must face up!
- FREE EFI Tuning software – For compete control of your Terminator X power plant
