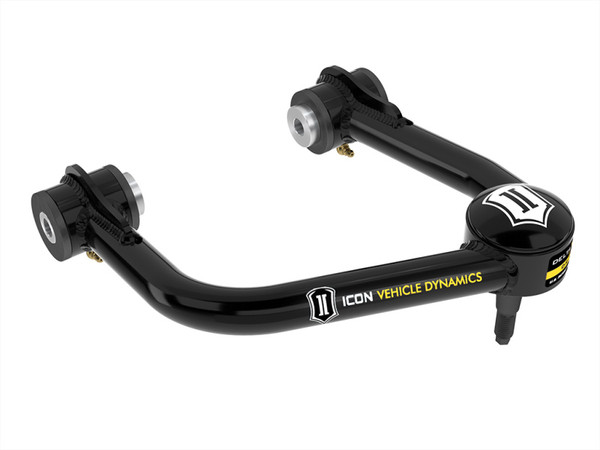

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Installation Instructions
Whitepaper


This Part Fits:

Year	Make	Model	Submodel
2021-2023	Ford	Bronco	Badlands
2021-2023	Ford	Bronco	Base
2021-2023	Ford	Bronco	Big Bend
2021-2023	Ford	Bronco	Black Diamond
2022-2023	Ford	Bronco	Everglades
2021	Ford	Bronco	First Edition
2023	Ford	Bronco	Heritage Edition
2023	Ford	Bronco	Heritage Limited Edition
2021-2023	Ford	Bronco	Outer Banks
2021-2023	Ford	Bronco	Wildtrak
