XDP X220 Series Head Stud Kit XD3013HS

×

Wait! If you're going to search Google for a better price - give us a shot first. Call us at 410.620.3020 and lets see if we can get you a better deal on this product.

No reviews yet Write a Review
$494.95
SKU:
XD3013HS
Availability:
OE Parts
Weight:
12.40 LBS
products.out_stock

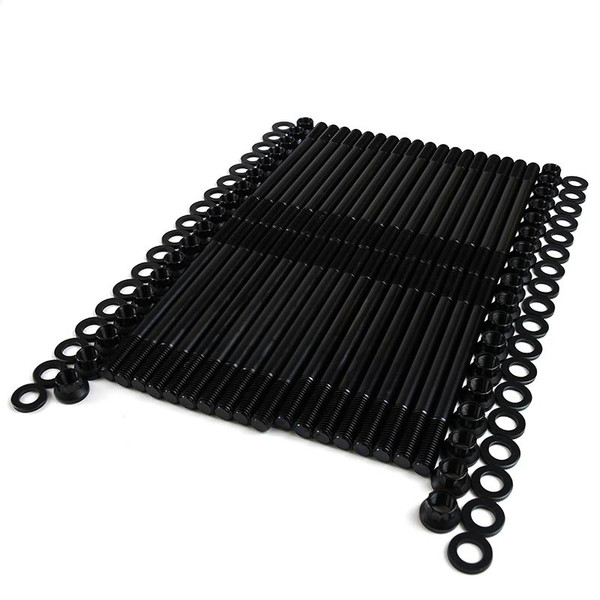

XDP X220 Series Head Stud Kit XD3013HS

$494.95

The XDP X220 Series Head Stud Kit XD3013HS provides your 1994-2003 Ford 7.3L Powerstroke with the increased clamping power you need. Upgrading the factory head bolts is a must when adding horsepower and torque to your Super Duty.

The OEM bolts typically can't handle the additional pressure from high-performance applications which can lead to the cylinder heads lifting. Upgrading to studs helps keep your cylinder heads locked down and avoid head gasket failures.

The XDP head studs are constructed from high-quality 8740 Chrome Moly that also includes a proprietary element added for superior strength and durability. The threads are rolled after heat-treating to deliver maximum fatigue strength.

These head studs are rated at 220,000 plus psi tensile strength and 210,000 plus psi yield strength to ensure the cylinder heads on your engine stay locked in place under higher combustion pressures.

In addition to the increased strength, replacing the head bolts with studs also allows you to obtain a more precise torque reading. A conventional bolt gets twisted as it is tightened, so it's reacting to two different forces at the same time.

With a stud the force gets applied to the vertical axis, resulting in a more even clamping force. These studs are reusable, unlike OEM Torque-To-Yield (TTY) studs which must be replaced after each use.

Another benefit of studs is proper alignment of the cylinder heads every time and provides for easier engine assembly. These studs are manufactured in an ISO/TS 16949 quality control facility. Included with the stud kit are washers and 12-point nuts.

Features:

  • Includes Washers and 12 Point Nuts
  • Yield Strength 210K psi - 230K psi
  • Tensile Strength 220K psi - 236K psi
  • Will Not Stretch Like The Factory Studs
  • Thread Has Been Rolled After Heat Treatment
  • High-Strength 8740 Chrome Moly Construction
  • 10mm Studs Test Out At A Max Load: Over 120KN
  • Manufactured In An ISO/TS 16949 Quality Control Factory
  • Studs Are Reusable, Unlike Torque-To-Yield (TTY) Bolts Which Much Be Replaced After Each Use

XDP Thread Cleaning Chaser (Sold Separately, See Related Items):
Purchase the XDP Thread Cleaning Chaser XD40125TC as an add-on to this kit. Using a Thread Cleaning Chaser ensures that you are able to properly clean the threads in your engine block before you begin installation and torquing of your new XDP head studs. Clean threads are critical to provide you with accurate torque readings during your engine build or head gasket repair.
